Three-Pc Ball Valves
Model：HE-316 TB
Sizes range: "NPS 1/2"~ 4" (DN8 ~ DN100)"
Port availability: Full port
Working pressure: 1/2"~ 2",1000WOG
2-1/2”~3”,800WOG
4”,600WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded/SW/BW end
Seat matrial: PTFE
Note: Handle locking (option)
On-line maintainable
ISO5211 Direct mounting pad
Download
Add to inquiry
Port availability: Full port
Working pressure: 1/2"~ 2",1000WOG
2-1/2”~3”,800WOG
4”,600WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded/SW/BW end
Seat matrial: PTFE
Note: Handle locking (option)
On-line maintainable
ISO5211 Direct mounting pad
MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
ASTM A351 GR.CF8M |
|
2 |
CAP |
ASTM A351 GR.CF8M |
|
3 |
BALL |
ASTM A351 GR.CF8M |
|
4 |
STEM |
ASTM A276 TYPE 316 |
|
5 |
SEAT |
PTFE |
|
6 |
GASKET |
PTFE |
|
7 |
THRUST WASHER |
POLYFILL TEFLON |
|
8 |
O-RING |
VITON |
|
9 |
STEM PACKING |
PTFE |
|
10 |
GLAND RING |
ASTM A276 TYPE 304 |
|
11 |
BEVEL WASHER |
ASTM A276 TYPE 301 |
|
12 |
STEM NUTS |
ASTM A276 TYPE 304 |
|
13 |
BOLTS |
ASTM A276 TYPE 304 |
|
14 |
BOLT NUTS |
ASTM A276 TYPE 304 |
|
15 |
BOLT WASHERS |
ASTM A276 TYPE 304 |
|
16 |
STATIC DEVICE |
ASTM A276 TYPE 304 |

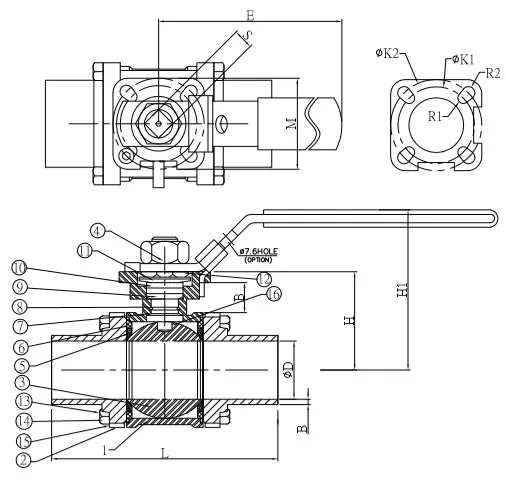

DIMENSIONS (mm)
|
SIZE |
øD |
øB |
L |
H |
H1 |
S |
M |
ØK1 |
øK2 |
R1 |
R2 |
B |
E |
|
|
NPS |
DN |
|||||||||||||
|
½〞 |
15 |
15 |
1.5 |
97.5 |
43 |
71 |
9 |
42 |
36 |
42 |
3 |
3 |
16 |
116 |
|
¾〞 |
20 |
20 |
1.5 |
100 |
46.7 |
74 |
9 |
42 |
36 |
42 |
3 |
3 |
16 |
116 |
|
1〞 |
25 |
25 |
1.5 |
110.5 |
50.4 |
78 |
11 |
50 |
42 |
50 |
3 |
3.5 |
17 |
156 |
|
1¼〞 |
32 |
32 |
1.5 |
132.5 |
55.6 |
94 |
11 |
50 |
42 |
50 |
3 |
3.5 |
17 |
156 |
|
1½〞 |
40 |
38 |
1.5 |
147.5 |
68 |
107 |
14 |
70 |
50 |
70 |
3.5 |
4.5 |
21 |
181 |
|
2〞 |
50 |
50 |
1.5 |
162.5 |
76 |
116 |
14 |
70 |
50 |
70 |
3.5 |
4.5 |
21 |
181 |
|
2½〞 |
65 |
65 |
2 |
219.5 |
96 |
145 |
17 |
102 |
70 |
102 |
4.5 |
5.5 |
27 |
260 |
|
3〞 |
80 |
80 |
2 |
293.5 |
106 |
154 |
17 |
102 |
70 |
102 |
4.5 |
5.5 |
27 |
260 |
|
4〞 |
100 |
100 |
2 |
318 |
126 |
185 |
22 |
125 |
102 |
125 |
5.5 |
6.5 |
23 |
334.5 |
