Flange End Ball Valves
Model：HE-611
Sizes range: "NPS 1/2"~ 4" (DN15 ~ DN100)"
Port availability: Full port
Nominal pressure ASME Class 150
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: ASME B16.5 Flange
ASME B16.10 F-T-F
Seat matrial: PTFE
Anti-static: Anti-static
Note: Handle locking (option)
ISO5211 mounting pad
Download
Add to inquiry
Port availability: Full port
Nominal pressure ASME Class 150
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: ASME B16.5 Flange
ASME B16.10 F-T-F
Seat matrial: PTFE
Anti-static: Anti-static
Note: Handle locking (option)
ISO5211 mounting pad

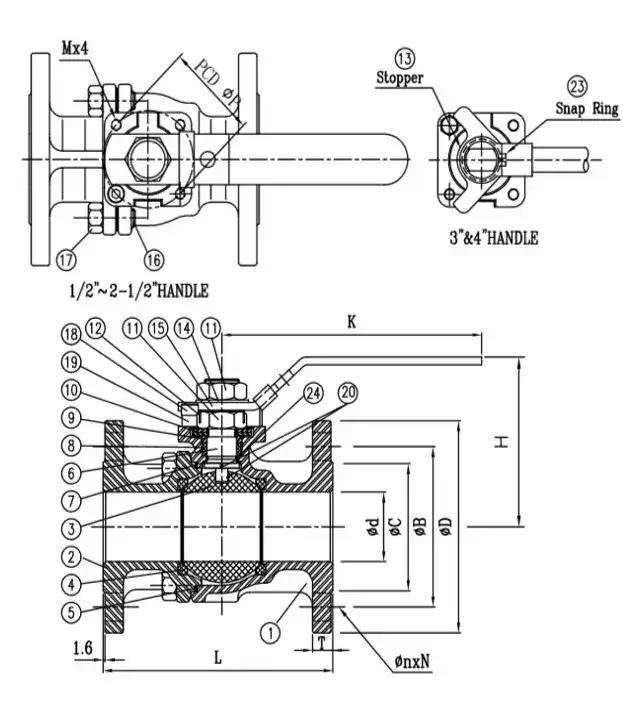

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
EN-10213-4,1.4408 |
|
2 |
CAP |
EN-10213-4,1.4408 |
|
3 |
BALL |
ASTM A351 GR.CF8M |
|
4 |
SEAT |
RPTFE |
|
5 |
GASKET |
PTFE |
|
6 |
STEM |
SS316 |
|
7 |
THRUST WASHER |
POLYFILL TEELON |
|
8 |
PACKING |
PTFE |
|
9 |
RING |
SS304 |
|
10 |
BEVEL WASHER |
SS301 |
|
11 |
HEX. NUT |
SS304 |
|
12 |
LOCK |
SS304 |
|
13 |
STOPPER |
SS304 |
|
14 |
HANDLE WASHER |
SS304 |
|
15 |
HANDLE |
SS304 |
|
16 |
BOLT |
SS304 |
|
17 |
HEX. NUT |
SS304 |
|
18 |
BOLT |
SS304 |
|
19 |
WASHER |
SS304 |
|
20 |
STATIC DEVICE |
SS304 |
|
21 |
HANDLE PIPE |
SS304 |
|
22 |
BOLT |
SS304 |
|
23 |
SNAP RING |
SS304 |
|
24 |
O-RING |
VITON |
DIMENSIONS (mm)
|
SIZE |
ød |
øB |
øC |
øD |
H |
K |
L |
T |
øn |
N |
M |
øP |
|
|
NPS |
DN |
||||||||||||
|
½〞 |
15 |
15 |
60.5 |
35.1 |
88.9 |
72 |
145 |
108 |
11.2 |
15.9 |
4 |
M5 |
42 |
|
¾〞 |
20 |
20 |
69.9 |
42.9 |
98.6 |
74 |
145 |
117 |
11.2 |
15.9 |
4 |
M5 |
42 |
|
1〞 |
25 |
25 |
79.2 |
50.8 |
108 |
81 |
178 |
127 |
11.2 |
15.9 |
4 |
M6 |
50 |
|
1¼〞 |
32 |
32 |
88.9 |
63.5 |
117.5 |
87 |
178 |
140 |
12.7 |
15.9 |
4 |
M6 |
50 |
|
1½〞 |
40 |
40 |
98.6 |
73.2 |
127 |
126 |
255 |
165 |
14.3 |
15.9 |
4 |
M8 |
70 |
|
2〞 |
50 |
50 |
120.7 |
91.9 |
152.4 |
136 |
255 |
178 |
15.8 |
19.1 |
4 |
M8 |
70 |
|
2½〞 |
65 |
65 |
139.7 |
104.6 |
177.8 |
155 |
255 |
190.5 |
17.6 |
19.1 |
4 |
M8 |
70 |
|
3〞 |
80 |
80 |
152.4 |
127 |
190.5 |
167 |
350 |
203 |
19.1 |
19.1 |
4 |
M10 |
102 |
|
4〞 |
100 |
100 |
190.5 |
157.5 |
228.6 |
179 |
400 |
228.6 |
23.9 |
19.1 |
8 |
M10 |
102 |
