Flange End Ball Valves
Model：HE-612
Sizes range: "NPS 1/2"~ 4" (DN15 ~ DN100)"
Port availability: Full port
Nominal pressure DN15~DN50:PN40
DN65~DN100:PN16
Temp. rating: -10°C~180°C
Body material: EN10213,1.4408
Trim material: SS ball & stem
End connection: EN1092-1
DIN3202 F1/F4
Seat material: PTFE
Anti-static: Anti-static
Note: Handle locking (option) ISO5211 mounting pad
Download
Add to inquiry
Port availability: Full port
Nominal pressure DN15~DN50:PN40
DN65~DN100:PN16
Temp. rating: -10°C~180°C
Body material: EN10213,1.4408
Trim material: SS ball & stem
End connection: EN1092-1
DIN3202 F1/F4
Seat material: PTFE
Anti-static: Anti-static
Note: Handle locking (option) ISO5211 mounting pad
MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
EN10213-4,1.4408 |
|
2 |
CAP |
EN10213-4,1.4408 |
|
3 |
BALL |
ASTM A351 GR.CF8M |
|
4 |
BALL SEAT |
RPTFE |
|
5 |
BODY SEAL |
PTFE |
|
6 |
STEM |
SS316 |
|
7 |
THRUST WASHER |
PTFE |
|
8 |
STEM PACKING |
PTFE |
|
9 |
RING |
SS304 |
|
10 |
BEVEL WASHER |
SS301 |
|
11 |
NUT |
SS304 |
|
12 |
ANTI-LOOSENING DEVICE |
SS304 |
|
13 |
STOPPER(3”&4”) |
SS304 |
|
14 |
WASHER |
SS304 |
|
15 |
HANDLE |
SS304 |
|
16 |
BOLT |
SS304 |
|
17 |
NUT |
SS304 |
|
18 |
STOPPER |
SS304 |
|
19 |
STOPPER RING |
SS304 |
|
20 |
ANTI-STATIC DEVICE |
SS304 |
|
21 |
HANDLE PIPE(3”&4”) |
SS304 |
|
22 |
BOLT(3”&4”) |
SS304 |
|
23 |
SNAP RING |
SS304 |
|
24 |
O-RING |
VITON |

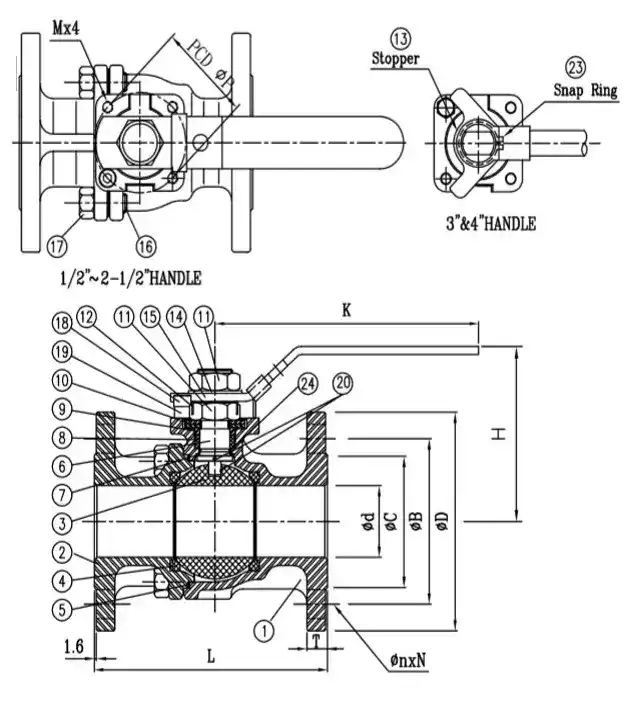

DIMENSIONS (mm)
|
SIZE |
ød |
B |
øC |
øD |
H |
K |
L |
T |
f |
øN |
M |
øP |
||
|
NPS |
DN |
F1 |
F2 |
|||||||||||
|
½〞 |
15 |
15 |
65 |
45 |
95 |
72 |
145 |
130 |
115 |
16 |
2 |
14 |
M5 |
42 |
|
¾〞 |
20 |
20 |
75 |
58 |
105 |
74 |
145 |
150 |
120 |
18 |
2 |
14 |
M5 |
42 |
|
1〞 |
25 |
25 |
85 |
68 |
115 |
81 |
178 |
160 |
125 |
18 |
2 |
14 |
M6 |
50 |
|
1¼〞 |
32 |
32 |
100 |
78 |
140 |
87 |
178 |
180 |
130 |
18 |
2 |
18 |
M6 |
50 |
|
1½〞 |
40 |
38 |
110 |
88 |
150 |
126 |
255 |
200 |
140 |
18 |
3 |
18 |
M8 |
70 |
|
2〞 |
50 |
50 |
125 |
102 |
165 |
136 |
255 |
230 |
150 |
20 |
3 |
18 |
M8 |
70 |
|
2½〞 |
65 |
65 |
145 |
122 |
185 |
155 |
255 |
290 |
170 |
18 |
3 |
18 |
M8 |
70 |
|
3〞 |
80 |
80 |
160 |
138 |
200 |
167 |
350 |
310 |
180 |
20 |
3 |
18 |
M10 |
102 |
|
4〞 |
100 |
100 |
180 |
158 |
220 |
179 |
400 |
350 |
190 |
20 |
3 |
18 |
M10 |
102 |
