Flange End Ball Valves
Model：HE-613
Sizes range: "NPS 1/2"~ 4" (DN15 ~ DN100)"
Port availability: Full port
Nominal pressure JIS 10K
Temp. rating: -10°C~180°C
Body material: SCS14A
Trim material: SS ball & stem
End connection: JIS B2212
JIS B2002 F-T-F
Seat material: PTFE
Anti-static: Anti-static
Note: With Handle locking
Download
Add to inquiry
Port availability: Full port
Nominal pressure JIS 10K
Temp. rating: -10°C~180°C
Body material: SCS14A
Trim material: SS ball & stem
End connection: JIS B2212
JIS B2002 F-T-F
Seat material: PTFE
Anti-static: Anti-static
Note: With Handle locking

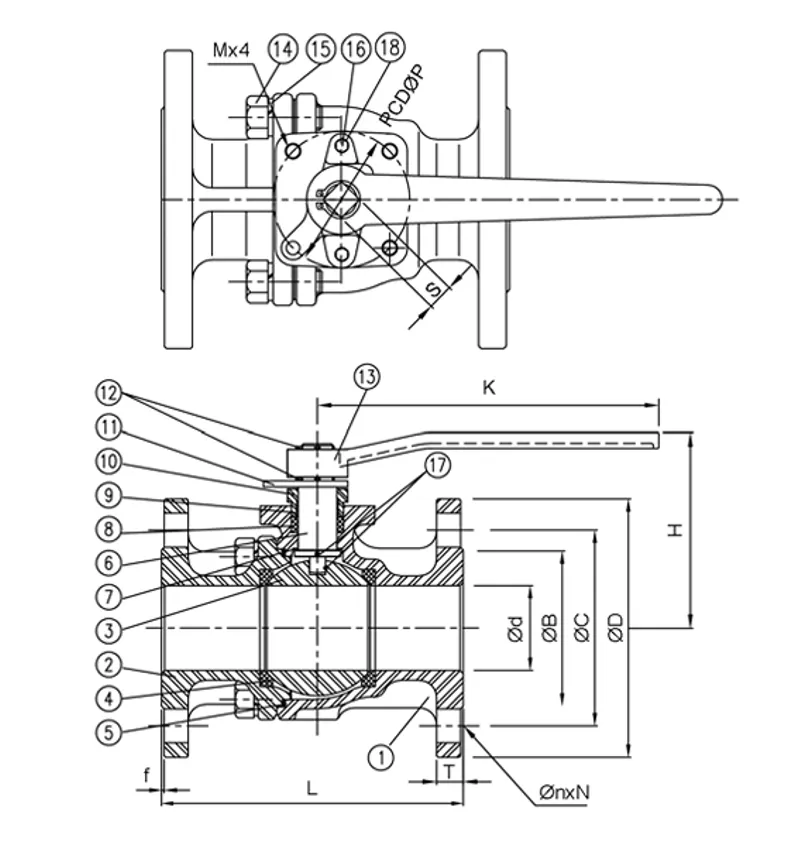

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
SCS13,SCS14,SCS16 |
|
2 |
CAP |
SCS13,SCS14,SCS16 |
|
3 |
BALL |
SCS13,SCS14,SCS16 |
|
4 |
BALL SEAT |
PTFE |
|
5 |
BODY SEAL |
PTFE |
|
6 |
STEM |
SS304, SS316, SS316L |
|
7 |
THRUST WASHER |
PTFE |
|
8 |
STEM PACKING |
PTFE |
|
9 |
GLAND BUSHING |
PTFE |
|
10 |
GLAND |
SCS13 |
|
11 |
STOPPER |
SS304 |
|
12 |
SNAP RING |
SS304 |
|
13 |
HANDLE |
FCD40 |
|
14 |
BOLT |
SS304 |
|
15 |
WASHER |
SS304 |
|
16 |
BOLT |
SS304 |
|
17 |
ANTI-STATIC DEVICE |
SS304 |
|
18 |
WASHER |
SS304 |
DIMENSIONS (mm)
|
SIZE |
ød |
øB |
øC |
øD |
K |
L |
T |
f |
øn |
N |
H |
M |
øP |
S |
|
|
NPS |
DN |
||||||||||||||
|
½〞 |
15 |
15 |
51 |
70 |
95 |
145 |
108 |
12 |
1 |
15 |
4 |
66 |
M5 |
42 |
9 |
|
¾〞 |
20 |
20 |
56 |
75 |
100 |
145 |
117 |
14 |
1 |
15 |
4 |
69 |
M5 |
42 |
9 |
|
1〞 |
25 |
25 |
67 |
90 |
125 |
165 |
127 |
14 |
1 |
19 |
4 |
89 |
M6 |
50 |
11 |
|
1¼〞 |
32 |
32 |
76 |
100 |
135 |
165 |
140 |
16 |
2 |
19 |
4 |
94 |
M6 |
50 |
11 |
|
1½〞 |
40 |
38 |
81 |
105 |
140 |
230 |
165 |
16 |
2 |
19 |
4 |
107 |
M8 |
70 |
17 |
|
2〞 |
50 |
50 |
96 |
120 |
155 |
230 |
178 |
16 |
2 |
19 |
4 |
122 |
M8 |
70 |
17 |
|
2½〞 |
65 |
65 |
116 |
140 |
175 |
230 |
190 |
18 |
2 |
19 |
4 |
138.7 |
M8 |
70 |
17 |
|
3〞 |
80 |
80 |
126 |
150 |
185 |
320 |
203 |
18 |
2 |
19 |
8 |
158 |
M10 |
102 |
22 |
|
4〞 |
100 |
100 |
151 |
175 |
210 |
320 |
228 |
18 |
2 |
19 |
8 |
175 |
M10 |
102 |
22 |
