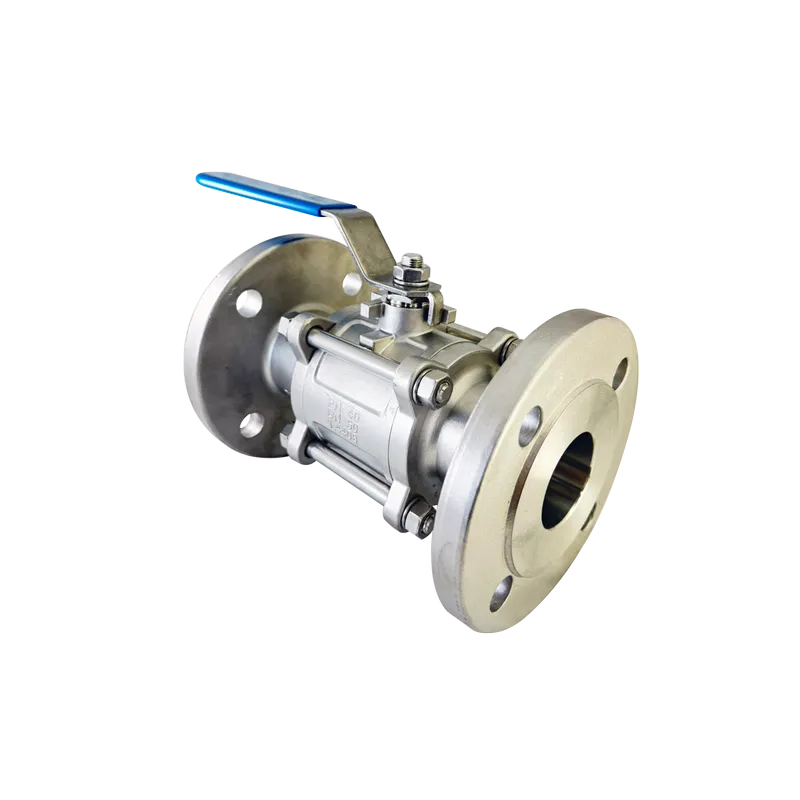

Flange End Ball Valves
Model：HE-3540F
Sizes range: 1/2”~ 4” (DN15 ~ DN100)
Port availability: Full port
Nominal pressure PN40
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Flange end
Seat material: PTFE- FDA
Note: Handle locking(option)
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN40
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Flange end
Seat material: PTFE- FDA
Note: Handle locking(option)

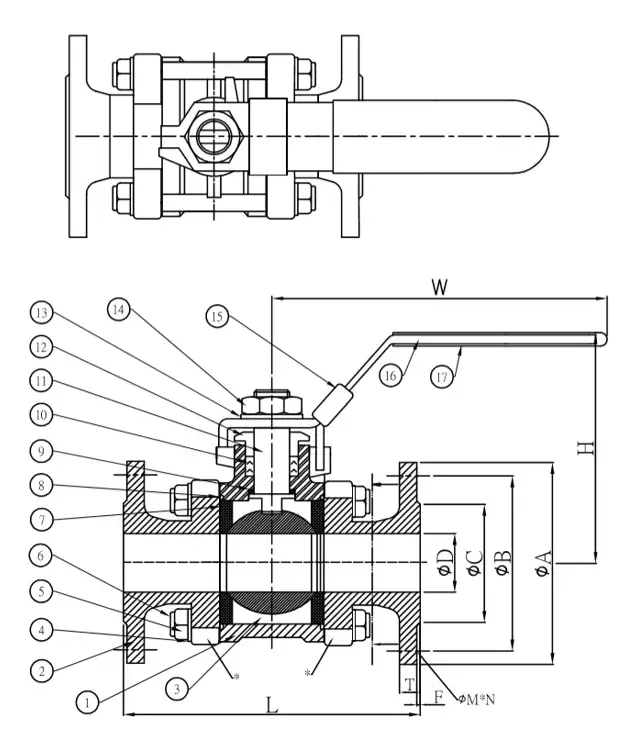

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408
|
|
2 |
CAP |
1.4408 |
|
3 |
BALL |
A351 CF8M |
|
4 |
WASHER |
1.4301 |
|
5 |
NUT |
1.4301 |
|
6 |
BOLT |
1.4301 |
|
7 |
BALL SEAT |
PTFE-FDA |
|
8 |
BODY SEAL |
PTFE-FDA |
|
9 |
THRUST WASHER |
PTFE-FDA |
|
10 |
STEM PACKING |
PTFE-FDA |
|
11 |
STEM |
A276 316 |
|
12 |
GLAND |
1.4301 |
|
13 |
WASHER |
1.4301 |
|
14 |
NUT |
1.4301 |
|
15 |
LOCKING DEVICE(option) |
1.4301 |
|
16 |
HANDLE |
1.4301 |
|
17 |
HANDLE SLEEVE |
PVC |
DIMENSIONS (mm)
|
SIZE |
øD |
øA |
øB |
øC |
T |
F |
L |
W |
H |
øM*N |
|
|
NPS |
DN |
||||||||||
|
½〞 |
15 |
16 |
95 |
65 |
45 |
16 |
2 |
130 |
125 |
64 |
ø 14*4 |
|
¾〞 |
20 |
20 |
105 |
75 |
58 |
18 |
2 |
150 |
125 |
67 |
ø 14*4 |
|
1〞 |
25 |
25 |
115 |
85 |
68 |
18 |
2 |
160 |
140 |
83 |
ø 14*4 |
|
1¼〞 |
32 |
32 |
140 |
100 |
78 |
18 |
2 |
180 |
140 |
89 |
ø 18*4 |
|
1½〞 |
40 |
38 |
150 |
110 |
88 |
18 |
3 |
200 |
200 |
100 |
ø 18*4 |
|
2〞 |
50 |
50 |
165 |
125 |
102 |
20 |
3 |
230 |
200 |
108 |
ø 18*4 |
|
2½〞 |
65 |
65 |
185 |
145 |
122 |
22 |
3 |
290 |
250 |
150 |
ø 18*8 |
|
3〞 |
80 |
80 |
200 |
160 |
138 |
24 |
3 |
310 |
250 |
161 |
ø 18*8 |
|
4〞 |
100 |
100 |
235 |
190 |
162 |
24 |
3 |
350 |
290 |
180 |
ø 22*8 |
