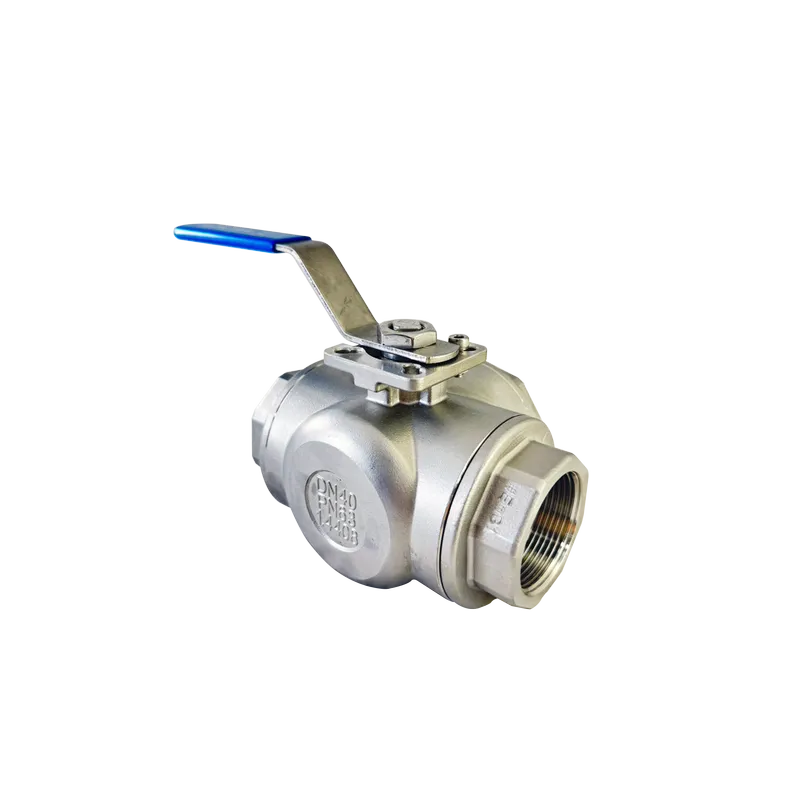

Multi-Way Ball Valves
Model：HE-3021T
Sizes range: 1/4"~ 2½" (DN08 ~ DN65)
Port availability: Reduce port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213,1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: T/L Type
ISO5211 Direct mounting pad
Download
Add to inquiry
Port availability: Reduce port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213,1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: T/L Type
ISO5211 Direct mounting pad

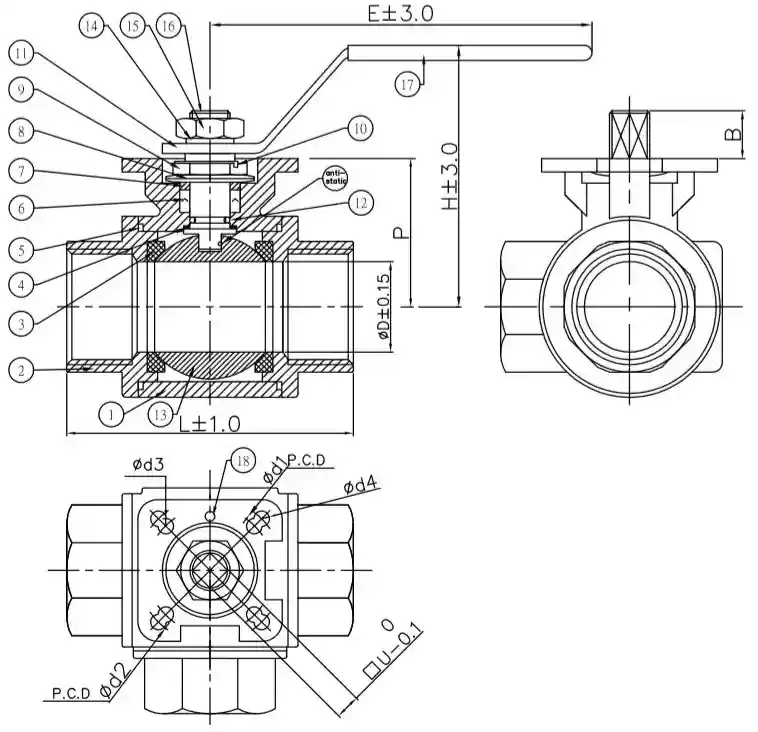

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408 |
|
2 |
END CAP |
1.4408 |
|
3 |
BALL SEAT |
PTFE |
|
4 |
THRUST WASHER |
PTFE |
|
5 |
BODY SEAL |
PTFE |
|
6 |
STET PACKING |
PTFE |
|
7 |
GLAND |
SS304 |
|
8 |
DISC SPRING |
SS301 |
|
9 |
NUT |
SS304 |
|
10 |
SECURING RING |
SS304 |
|
11 |
HANDLE(option) |
SS304 |
|
12 |
O-RING |
VITON |
|
13 |
BALL |
CF8M |
|
14 |
SPACER RING |
SS304 |
|
15 |
NUT |
SS304 |
|
16 |
STEM |
A276 316 |
|
17 |
COVER(option) |
PLASTIC |
|
18 |
STOPPER DRILLING(option) |
|
DIMENSIONS (mm)
|
SIZE |
øD |
E |
L |
H |
B |
P |
口U |
ød1 |
ød3 |
ød2 |
ød4 |
ISO 5211 |
|
|
NPS |
DN |
||||||||||||
|
¼〞 |
8 |
11.5 |
119 |
80 |
50 |
9 |
35.5 |
9 |
36 |
5.5 |
42 |
5.5 |
F03,F04 |
|
⅜〞 |
10 |
12.7 |
119 |
80 |
50 |
9 |
35.5 |
9 |
36 |
5.5 |
42 |
5.5 |
F03,F04 |
|
½〞 |
15 |
12.7 |
119 |
80 |
53 |
9 |
35.5 |
9 |
36 |
5.5 |
42 |
5.5 |
F03,F04 |
|
¾〞 |
20 |
15 |
150.5 |
88 |
64 |
11 |
40.5 |
11 |
42 |
5.5 |
50 |
6.5 |
F04,F05 |
|
1〞 |
25 |
20 |
150.5 |
99 |
66 |
11.5 |
44.5 |
11 |
42 |
5.5 |
50 |
6.5 |
F04,F05 |
|
1¼〞 |
32 |
25.4 |
150.5 |
122 |
79 |
11 |
51 |
11 |
42 |
5.5 |
50 |
6.5 |
F04,F05 |
|
1½〞 |
40 |
32 |
150.5 |
141 |
83 |
11 |
56 |
11 |
42 |
5.5 |
50 |
6.5 |
F04,F05 |
|
2〞 |
50 |
38 |
188.5 |
170 |
94 |
15.5 |
66 |
14 |
50 |
6.5 |
70 |
8.5 |
F05,F07 |
|
2½〞 |
65 |
50 |
188.5 |
170 |
106 |
17 |
80 |
14 |
|
|
70 |
8.5 |
F07 |
