Multi-Way Tube Welding end 1000WOG Direct Mount Ball Valves
Model：HE-3028 TB
Sizes range: 1/2”~ 4” (DN15 ~ DN50)
Port availability: Full port
Nominal pressure 1000WOG
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Tube Welding end (T-Clamp end also available)
Seat material: PTFE
Note: T/L/X Type ISO5211 Direct mounting pad
Add to inquiry
Port availability: Full port
Nominal pressure 1000WOG
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Tube Welding end (T-Clamp end also available)
Seat material: PTFE
Note: T/L/X Type ISO5211 Direct mounting pad

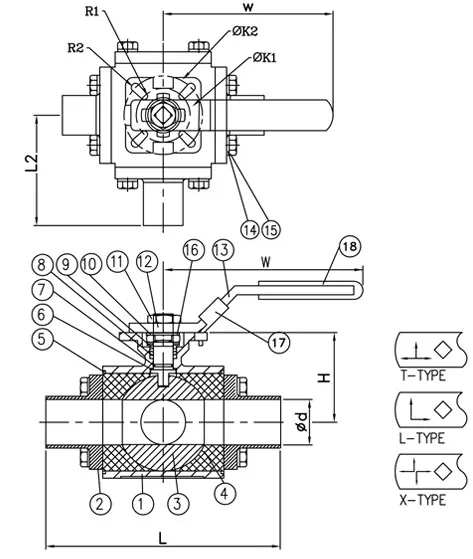

MATERIAL LIST
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
ASTM A351 CF8M/CF3M |
|
2 |
CAP |
ASTM A351 CF8M/CF3M |
|
3 |
BALL |
ASTM A351 CF8M/CF3M |
|
4 |
BALL SEAT |
PTFE/TFM-1600 |
|
5 |
BODY SEAL |
PTFE/TFM-1600 |
|
6 |
THRUST WASHER |
PTFE/TFM-1600 |
|
7 |
O-RING |
VITON |
|
8 |
STEM PACKING |
PTFE/TFM-1600 |
|
9 |
GLAND RING |
AISI 304 |
|
10 |
BEVEL WASHER |
AISI 304 |
|
11 |
NUT |
AISI 304 |
|
12 |
STEM |
AISI 316 / 316L |
|
13 |
HANDLE |
AISI 304 |
|
14 |
SPRING WASHER |
AISI 304 |
|
15 |
BOLT |
AISI 304 |
|
16 |
NUT |
AISI 304 |
|
17 |
LOCKING DEVICE(option) |
AISI 304 |
|
18 |
HANDLE SLEEVE |
PVC |
DIMENSIONS (mm)
|
SIZE |
ød |
L |
L2 |
H |
W |
Ø42K1 |
ØK2 |
R1 |
R2 |
|
|
NPS |
DN |
|||||||||
|
½〞 |
15 |
9.5 |
118 |
59 |
44.5 |
132 |
42 |
50 |
3 |
3.5 |
|
¾〞 |
20 |
15.8 |
127 |
63.5 |
48 |
132 |
42 |
50 |
3 |
3.5 |
|
1〞 |
25 |
22.2 |
152 |
47.5 |
59 |
160 |
42 |
50 |
3 |
3.5 |
|
1½〞 |
40 |
35 |
175 |
87 |
72 |
205 |
50 |
70 |
3.5 |
4.5 |
|
2〞 |
50 |
47.5 |
190 |
95 |
82 |
205 |
50 |
70 |
3.5 |
4.5 |
|
2½〞 |
65 |
60 |
228 |
107 |
100 |
317 |
70 |
102 |
4.5 |
5.5 |
|
3〞 |
80 |
73 |
260 |
122 |
126 |
317 |
102 |
125 |
5.5 |
6.5 |
|
4〞 |
100 |
97.4 |
289 |
159 |
153.5 |
317 |
102 |
125 |
5.5 |
6.5 |
