One-Pc Ball Valves
Model：HE-114
Sizes range: "NPS 1/4"~ 2" (DN8 ~ DN50)"
Port availability: Reduce port
Working pressure: 2000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A108,1018 or AISI 1021 Carbon Steel
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: RPTFE
Note: Handle locking (option)
Anti-rust surface finishing
Download
Add to inquiry
Port availability: Reduce port
Working pressure: 2000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A108,1018 or AISI 1021 Carbon Steel
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: RPTFE
Note: Handle locking (option)
Anti-rust surface finishing

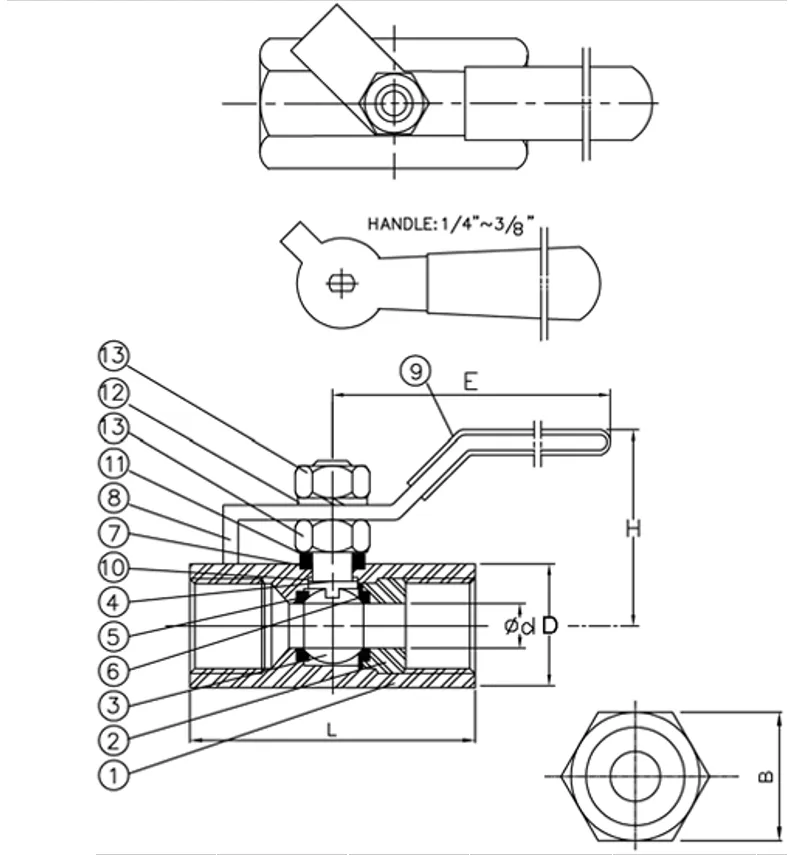

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
ASTM A108 CL.1018 or AISI 1021 C.S |
|
2 |
INSCREWED SET RETAINER |
ASTM A108 CL.1018 or AISI 1021 C.S |
|
3 |
BALL |
SS304 |
|
4 |
STEM |
SS316 |
|
5 |
BALL SEAT |
RPTFE |
|
6 |
CAP SEAL |
RPTFE |
|
7 |
PACKING |
PTFE |
|
8 |
HANDLE |
SS304 |
|
9 |
HANDLE SLEEVE |
VINYL GRIP |
|
10 |
THRUST WASHER |
PTFE |
|
11 |
GLAND |
SS304 |
|
12 |
WASHER |
SS304 |
|
13 |
HANDLE NUT |
SS304 |
|
14 |
STEM NUT |
SS304 |
DIMENSIONS (mm)
|
SIZE |
d |
L |
D |
H |
E |
|
|
NPS |
DN |
|||||
|
¼〞 |
8 |
5 |
44 |
19 |
29 |
61 |
|
⅜〞 |
10 |
7 |
48 |
23 |
35 |
80 |
|
½〞 |
15 |
9.2 |
58 |
29 |
66 |
104 |
|
¾〞 |
20 |
12.5 |
65.5 |
35 |
69 |
107 |
|
1〞 |
25 |
15 |
86 |
41 |
75 |
118 |
|
1¼〞 |
32 |
20 |
92 |
55 |
78 |
146 |
|
1½〞 |
40 |
25 |
96 |
60 |
85 |
148 |
|
2〞 |
50 |
32 |
114 |
73 |
98 |
150 |
