Three-Pc Ball Valves
Model：HE-312
Sizes range: "NPS 1/4"~ 4" (DN8 ~ DN100)"
Port availability: Full port
Working pressure: 1/4"~ 2",1000WOG
2-1/2”~3”,800WOG
4”,600WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded/SW/BW end
Seat matrial: PTFE
Note: Handle locking (option)
On-line maintainable
ISO5211 mounting pad
Download
Add to inquiry
Port availability: Full port
Working pressure: 1/4"~ 2",1000WOG
2-1/2”~3”,800WOG
4”,600WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded/SW/BW end
Seat matrial: PTFE
Note: Handle locking (option)
On-line maintainable
ISO5211 mounting pad

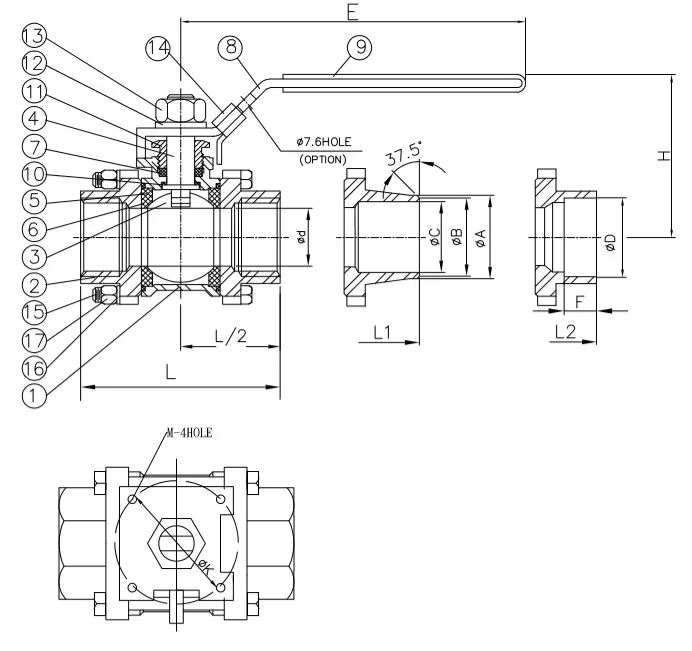

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
ASTM A351 GR.CF8M/A216 WCB |
|
2 |
END CAP |
ASTM A351 GR.CF8M/A216 WCB |
|
3 |
BALL |
ASTM A351 GR.CF8M/CF8M |
|
4 |
STEM |
SS316 |
|
5 |
BALL SEAT |
PTFE |
|
6 |
END SEAL |
PTFE |
|
7 |
STEM PACKING |
PTFE |
|
8 |
HANDLE |
SS304 |
|
9 |
HANDLE SLEEVE |
VINYL GRIP |
|
10 |
THRUST WASHER |
PTFE |
|
11 |
GLAND |
SS304 |
|
12 |
HANDLE WASHER |
SS304 |
|
13 |
HANDLE NUT |
SS304 |
|
14 |
LOCKING PLATE |
SS304 |
|
15 |
BOLTS |
SS304 |
|
16 |
BOLT WASHERS |
SS304 |
|
17 |
BOLT NUTS |
SS304 |
DIMENSIONS (mm)
|
SIZE |
ød |
L |
L1 |
L2 |
H |
E |
øA |
øB |
øC |
øD |
øK |
M |
|
|
NPS |
DN |
||||||||||||
|
¼〞 |
8 |
11.6 |
65 |
65 |
65 |
56 |
96 |
18 |
12 |
10 |
14 |
36 |
M5 |
|
⅜〞 |
10 |
12.5 |
65 |
65 |
65 |
56 |
96 |
18 |
16 |
13 |
17.5 |
36 |
M5 |
|
½〞 |
15 |
15 |
65 |
64 |
65 |
60 |
96 |
23 |
19 |
15.8 |
22 |
36 |
M5 |
|
¾〞 |
20 |
20 |
79 |
79 |
79 |
62 |
120 |
28 |
24 |
21 |
27.5 |
36 |
M5 |
|
1〞 |
25 |
25 |
86 |
85 |
86 |
74 |
152 |
35 |
31.5 |
26.6 |
34.5 |
42 |
M5 |
|
1¼〞 |
32 |
32 |
105 |
103 |
105 |
80 |
150 |
43 |
39 |
35 |
43.3 |
42 |
M5 |
|
1½〞 |
40 |
38 |
119 |
118 |
119 |
86 |
164 |
50 |
45 |
40.5 |
49.2 |
50 |
M6 |
|
2〞 |
50 |
50 |
133 |
134 |
133 |
99 |
164 |
61 |
56 |
52.5 |
61.2 |
50 |
M6 |
|
2½〞 |
65 |
65 |
163 |
164 |
163 |
136 |
248 |
75 |
69 |
65 |
77 |
70 |
M8 |
|
3〞 |
80 |
80 |
183 |
181 |
183 |
137 |
248 |
95 |
85 |
80 |
89.9 |
102 |
M10 |
|
4〞 |
100 |
100 |
227 |
264 |
227 |
180 |
290 |
120 |
105 |
101 |
115 |
102 |
M10 |
