Three-Pc Ball Valves
Model：HE-3501T
Sizes range: 1/4"~ 4" (DN08 ~ DN100)
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Anti-static Anti-static(option)
Note: Handle locking(option)
ISO5211 Direct mounting pad
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Anti-static Anti-static(option)
Note: Handle locking(option)
ISO5211 Direct mounting pad

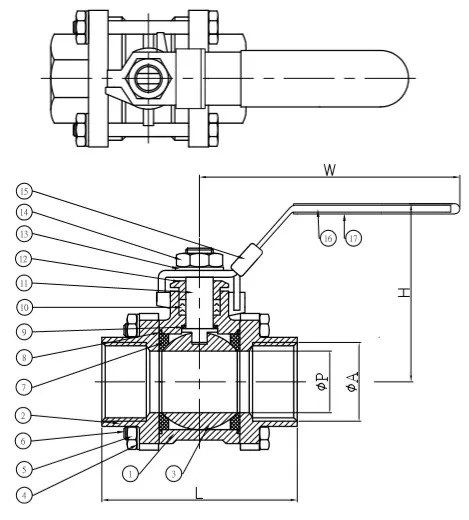

MATERIAL LIST
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408
|
|
2 |
END CAP |
1.4408 |
|
3 |
BALL |
A351 CF8M |
|
4 |
WASHER |
1.4301 |
|
5 |
NUT |
1.4301 |
|
6 |
BOLT |
1.4301 |
|
7 |
BALL SEAT |
PTFE |
|
8 |
BODY SEAL |
PTFE |
|
9 |
THRUST WASHER |
PTFE |
|
10 |
STEM PACKING |
PTFE |
|
11 |
STEM |
A276 316 |
|
12 |
GLAND |
1.4301 |
|
13 |
WASHER |
1.4301 |
|
14 |
NUT |
1.4301 |
|
15 |
LOCKING(option) |
1.4301 |
|
16 |
HANDLE |
1.4301 |
|
17 |
COVER |
PLASTIC |
DIMENSIONS (mm)
|
SIZE |
øP |
L |
H |
E |
||
|
NPS |
DN |
|||||
|
¼〞 |
8 |
10.6 |
60 |
55 |
97.5 |
|
|
⅜〞 |
10 |
11.8 |
60 |
55 |
97.5 |
|
|
½〞 |
15 |
16 |
75 |
64 |
125.5 |
|
|
¾〞 |
20 |
20 |
80 |
67 |
125.5 |
|
|
1〞 |
25 |
25 |
90 |
83 |
143.5 |
|
|
1¼〞 |
32 |
32 |
110 |
89 |
143.5 |
|
|
1½〞 |
40 |
38 |
120 |
100 |
203.5 |
|
|
2〞 |
50 |
51 |
140 |
108 |
203.5 |
|
|
2½〞 |
65 |
65 |
185 |
150 |
251.5 |
|
|
3〞 |
80 |
80 |
205 |
161 |
251.5 |
|
|
4〞 |
100 |
100 |
240 |
180 |
291.5 |
|
