Three-Pc Ball Valves
Model：HE-3521B
Sizes range: 1/4"~ 4" (DN08 ~ DN100)
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Long/short BW end
Seat matrial: PTFE-FDA
Anti-static Anti-static(option)
Note: Handle locking(option)
ISO5211 Direct mounting pad
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Long/short BW end
Seat matrial: PTFE-FDA
Anti-static Anti-static(option)
Note: Handle locking(option)
ISO5211 Direct mounting pad
MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408 |
|
2 |
END CAP |
1.4408 |
|
3 |
BALL |
A351 CF8M |
|
4 |
WASHER |
SS304 |
|
5 |
NUT |
SS304 |
|
6 |
BOLT |
SS304 |
|
7 |
SEAT |
PTFE-FDA |
|
8 |
BODY SEAL |
PTFE-FDA |
|
9 |
THRUST WASHER |
PTFE-FDA |
|
10 |
STEM PACKING |
A276 316VITON |
|
11 |
O-RING |
VITON |
|
12 |
STEM SEAL |
PTFE-FDA |
|
13 |
GLAND RING |
SS304 |
|
14 |
BEVEL WASHER |
SUS301 |
|
15 |
GLAND CAP |
SS304 |
|
16 |
SPACER RING-option |
PTFE-FDA |
|
17 |
HANDLE- option |
SS304 |
|
18 |
STOPPER- option |
SS304 |

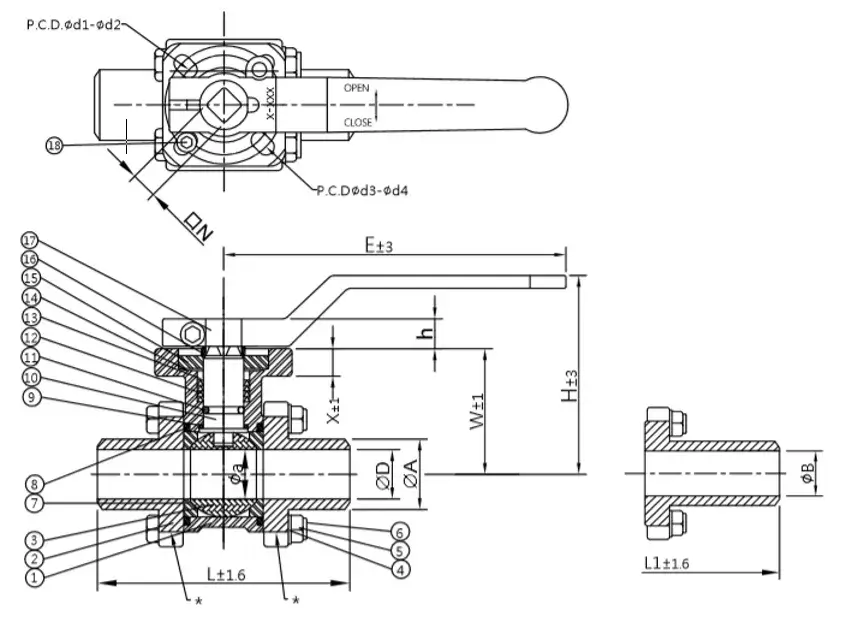

DIMENSIONS (mm)
|
SIZE |
øa |
øD |
L |
L1 |
øB |
W |
E |
H |
X |
口N |
øA |
h |
ød1 |
ød2 |
ød3 |
ød4 |
ISO 5211 |
|
|
NPS |
DN |
|||||||||||||||||
|
¼〞 |
8 |
16 |
11 |
65 |
|
|
41 |
124 |
64 |
9 |
9 |
18 |
9 |
36 |
6 |
42 |
6 |
F03.F04 |
|
⅜〞 |
10 |
16 |
12 |
70 |
94 |
12.5 |
41 |
124 |
64 |
9 |
9 |
20 |
9 |
36 |
6 |
42 |
6 |
F03.F04 |
|
½〞 |
15 |
16 |
16 |
75 |
99 |
16 |
41 |
124 |
64 |
9 |
9 |
23 |
9 |
36 |
6 |
42 |
6 |
F03.F04 |
|
¾〞 |
20 |
20 |
20 |
90 |
96 |
20 |
44 |
124 |
68 |
9 |
9 |
28 |
9 |
36 |
6 |
42 |
6 |
F03.F04 |
|
1〞 |
25 |
25 |
25 |
100 |
103 |
25 |
53 |
187 |
91 |
10 |
11 |
34 |
12 |
42 |
6 |
50 |
7 |
F04.F05 |
|
1¼〞 |
32 |
32 |
32 |
110 |
102 |
32 |
58 |
187 |
97 |
10 |
11 |
41 |
12 |
42 |
6 |
50 |
7 |
F04.F05 |
|
1½〞 |
40 |
38.1 |
38 |
125 |
102 |
40 |
69 |
222 |
107 |
13 |
14 |
49 |
15 |
50 |
7 |
70 |
9 |
F05.F07 |
|
2〞 |
50 |
50.8 |
50 |
150 |
101 |
50 |
77 |
222 |
116.5 |
13 |
14 |
62 |
15 |
50 |
7 |
70 |
9 |
F05.F07 |
|
2½〞 |
65 |
65 |
65 |
190 |
124 |
65 |
98 |
302 |
154.5 |
13 |
17 |
78 |
18 |
70 |
9 |
102 |
11 |
F07.F10 |
|
3〞 |
80 |
80 |
80 |
220 |
125 |
80 |
110 |
302 |
166.5 |
13 |
17 |
93 |
18 |
70 |
9 |
102 |
11 |
F07.710 |
|
4〞 |
100 |
100 |
100 |
270 |
115 |
100 |
137 |
350 |
219.5 |
15 |
22 |
125 |
24 |
|
|
102 |
11 |
F10 |
