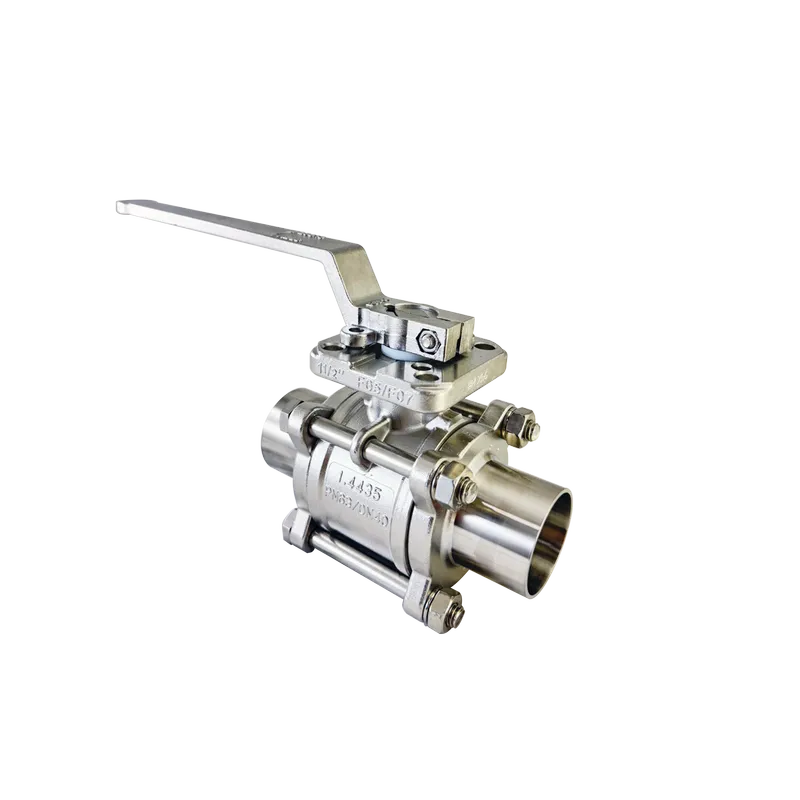

Three-Pc Ball Valves
Model：HE-3521P
Sizes range: 1/4"~ 4" (DN08 ~ DN100)
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: 1.4435
Trim material: Fe<1.0%
End connection: ASME/DIN/ISO BE end
Seat matrial: PTFE-FDA
Anti-static Anti-static(option)
Note: Handle locking(option)
ISO5211 Direct mounting pad
Elcarolysis polished
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: 1.4435
Trim material: Fe<1.0%
End connection: ASME/DIN/ISO BE end
Seat matrial: PTFE-FDA
Anti-static Anti-static(option)
Note: Handle locking(option)
ISO5211 Direct mounting pad
Elcarolysis polished

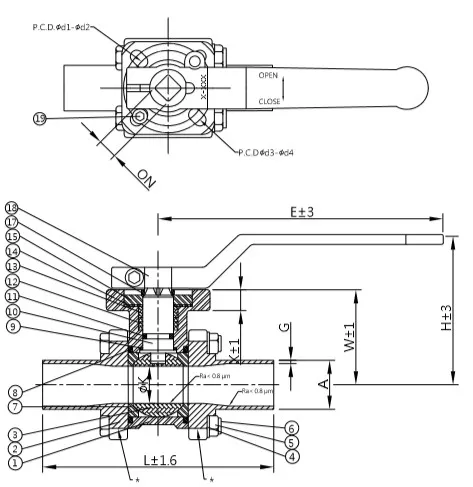

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4435 delta Fe<1 % |
|
2 |
END CAP |
1.4435 delta Fe<1 % |
|
3 |
BALL |
≤1/2” 316L>1/2” 1.4435 delta Fe<1 % |
|
4 |
WASHER |
SS316 |
|
5 |
NUT |
SS316 |
|
6 |
BOLT |
SS316 |
|
7 |
SEAT |
PTFE-FDA+50%SS |
|
8 |
BODY SEAL |
PTFE-FDA |
|
9 |
THRUST WASHER |
PTFE-FDA |
|
10 |
STEM PACKING |
SS316L |
|
11 |
O-RING |
SILICONE |
|
12 |
STEM SEAL |
PTFE-FDA |
|
13 |
GLANG |
SS316 |
|
14 |
BEVEL WASHER |
SUS301 |
|
15 |
GLAND CAP |
SS316 |
|
16 |
END PVC PLUGS |
PVC |
|
17 |
SPACER RING- option |
PTFE-FDA |
|
18 |
HANDLE- option |
SS316+electro polished |
|
19 |
STOPPER- option |
SS316 |
DIMENSIONS (mm)
|
SIZE |
L |
W |
øK |
E |
H |
X |
ON |
G |
A |
ød1 |
ød2 |
ød3 |
ød4 |
ISO 5211 |
|
|
NPS |
DN |
||||||||||||||
|
¼〞 |
8 |
100 |
41 |
10.3 |
124 |
64 |
9 |
9 |
1.6 |
13.5 |
36 |
6 |
42 |
6 |
F03.F04 |
|
⅜〞 |
10 |
100 |
41 |
14 |
124 |
64 |
9 |
9 |
1.6 |
17.2 |
36 |
6 |
42 |
6 |
F03.F04 |
|
½〞 |
15 |
100 |
41 |
16 |
124 |
64 |
9 |
9 |
1.6 |
21.3 |
36 |
6 |
42 |
6 |
F03.F04 |
|
¾〞 |
20 |
105 |
44 |
20 |
124 |
68 |
9 |
9 |
1.6 |
26.9 |
36 |
6 |
42 |
6 |
F03.F04 |
|
1〞 |
25 |
115 |
53 |
25 |
187 |
91 |
10 |
11 |
2.0 |
33.7 |
42 |
6 |
50 |
7 |
F04.F05 |
|
1¼〞 |
32 |
140 |
58 |
32 |
187 |
97 |
10 |
11 |
2.0 |
42.4 |
42 |
6 |
50 |
7 |
F04.F05 |
|
1½〞 |
40 |
150 |
69 |
38.1 |
222 |
107 |
13 |
14 |
2.0 |
48.3 |
50 |
7 |
70 |
9 |
F05.F07 |
|
2〞 |
50 |
170 |
77 |
50.8 |
222 |
116.5 |
13 |
14 |
2.0 |
60.3 |
50 |
7 |
70 |
9 |
F05.F07 |
|
2½〞 |
65 |
220 |
98 |
65 |
302 |
154.5 |
13 |
17 |
2.0 |
76.1 |
70 |
9 |
102 |
11 |
F07.F10 |
|
3〞 |
80 |
300 |
110 |
80 |
302 |
166.5 |
13 |
17 |
2.3 |
88.9 |
70 |
9 |
102 |
11 |
F07.710 |
|
4〞 |
100 |
325 |
137 |
100 |
350 |
219.5 |
16 |
22 |
2.3 |
114.3 |
|
|
102 |
11 |
F10 |
