Two-Pc Ball Valves
Model：HE-213
Sizes range: "NPS 1/4"~ 2" (DN8 ~ DN50)"
Port availability: Full port
Working pressure: 1000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
Download
Add to inquiry
Port availability: Full port
Working pressure: 1000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)

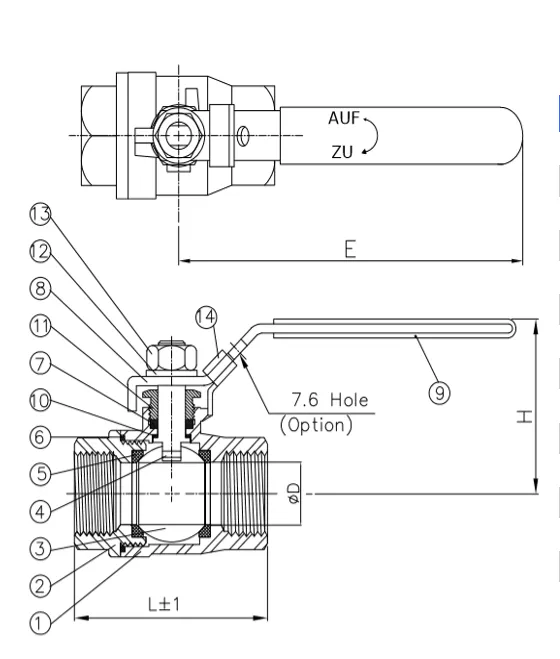

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIALS |
|
1 |
BODY |
CF8M |
|
2 |
CAP |
CF8M |
|
3 |
BALL |
CF8M |
|
4 |
STEM |
A276 316 |
|
5 |
BALL SEAT |
PTFE (FDA) |
|
6 |
BODY SEAL |
PTFE (FDA) |
|
7 |
STEM PACKING |
PTFE (FDA) |
|
8 |
HANDLE |
SS304 |
|
9 |
HANDLE SLEEVE |
VINYL |
|
10 |
THRUST WASHER |
PTFE (FDA) |
|
11 |
GLAND |
SS304 |
|
12 |
WASHER |
SS304 |
|
13 |
NUT |
SS304 |
|
14 |
LOCKING DEVICE(option) |
SS304 |
DIMENSIONS (mm)
|
SIZE |
øD |
E |
H |
L |
|
|
NPS |
DN |
||||
|
¼〞 |
8 |
11.6 |
100 |
51 |
53.5 |
|
⅜〞 |
10 |
12.5 |
100 |
51 |
53.5 |
|
½〞 |
15 |
15 |
100 |
53 |
57 |
|
¾〞 |
20 |
20 |
122 |
60 |
64 |
|
1〞 |
25 |
25 |
150 |
68 |
78 |
|
1¼〞 |
32 |
32 |
150 |
73 |
93.5 |
|
1½〞 |
40 |
38 |
164 |
87 |
105 |
|
2〞 |
50 |
50 |
164 |
95 |
117 |
