Two-Pc Ball Valves
Model：HE-214
Sizes range: "NPS 1/4"~ 2" (DN8 ~ DN50)"
Port availability: Standard Port
Working pressure: 1/4"~ 1",2000WOG
1-1/4”~2”,1500WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
Download
Add to inquiry
Port availability: Standard Port
Working pressure: 1/4"~ 1",2000WOG
1-1/4”~2”,1500WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)

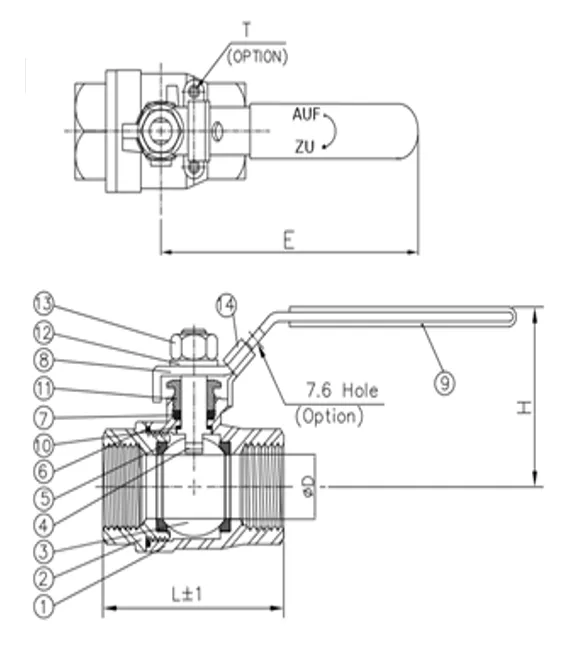

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
ASTM A351 GR.CF8M/A216 WCB |
|
2 |
CAP |
ASTM A351 GR.CF8M/A216 WCB |
|
3 |
BALL |
ASTM A351 GR.CF8M/CF8 |
|
4 |
STEM |
SS316 |
|
5 |
BALL SEAT |
PTFE |
|
6 |
BODY SEAL |
PTFE |
|
7 |
STEM PACKING |
PTFE |
|
8 |
HANDLE |
SS304 |
|
9 |
HANDLE SLEEVE |
VINYL GRIP |
|
10 |
THRUST WASHER |
PTFE |
|
11 |
GLAND |
SS304 |
|
12 |
WASHER |
SS304 |
|
13 |
NUT |
SS304 |
|
14 |
LOCKING PLATE |
SS304 |
DIMENSIONS (mm)
|
SIZE |
øD |
L |
H |
E |
|
|
NPS |
DN |
||||
|
¼〞 |
8 |
9.5 |
52 |
55 |
100 |
|
⅜〞 |
10 |
9.5 |
52 |
55 |
100 |
|
½〞 |
15 |
12.7 |
64 |
58 |
100 |
|
¾〞 |
20 |
15 |
71 |
60 |
130 |
|
1〞 |
25 |
20 |
86 |
64 |
130 |
|
1¼〞 |
32 |
25 |
94 |
66 |
165 |
|
1½〞 |
40 |
32 |
102 |
79 |
165 |
|
2〞 |
50 |
38.1 |
117 |
83 |
190 |
