Two-Pc Ball Valves
Model：HE-2401ML
Sizes range: 3/8"~ 1" (DN10 ~ DN25)
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)

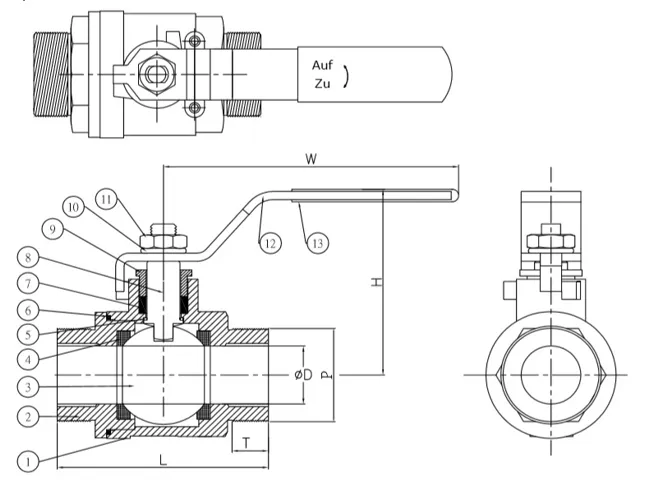

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408
|
|
2 |
END CAP |
1.4408 |
|
3 |
BALL |
SS316 |
|
4 |
BALL SEAT |
PTFE |
|
5 |
THRUST WASHER |
PTFE |
|
6 |
BODY SEAL |
PTFE |
|
7 |
STEM PACKING |
PTFE |
|
8 |
STEM |
SS316 |
|
9 |
GLAND |
SS304 |
|
10 |
WASHER |
SS304 |
|
11 |
NUT |
SS304 |
|
12 |
HANDLE |
SS304 |
|
13 |
COVER |
Plastic |
DIMENSIONS (mm)
|
SIZE |
øD |
L |
H |
W |
T |
P |
||
|
NPS |
DN |
|||||||
|
⅜〞 |
10 |
10 |
70 |
64 |
95 |
13 |
DIN2999-3/4 |
|
|
½〞 |
15 |
15 |
85 |
64 |
125 |
15 |
DIN2999-1 |
|
|
¾〞 |
20 |
20 |
100 |
67 |
125 |
17 |
DIN2999-11/4 |
|
|
1〞 |
25 |
25 |
110 |
83 |
140 |
17 |
DIN2999-11/2 |
|
