Two-Pc Ball Valves
Model：HE-2402
Sizes range: 3/8"~ 2" (DN10 ~ DN50)
Port availability: Full port
Nominal pressure PN100
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN100
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)

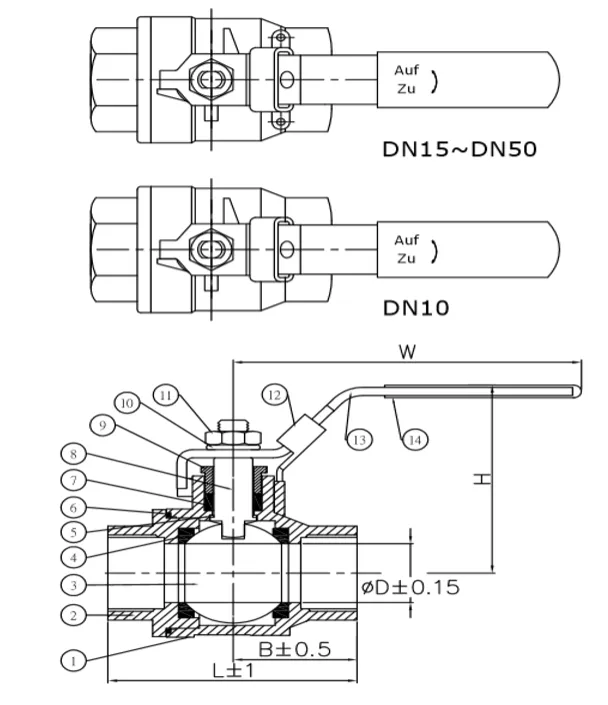

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408
|
|
2 |
END CAP |
1.4408 |
|
3 |
BALL |
CF8M |
|
4 |
STEM |
PTFE |
|
5 |
THRUST WASHER |
PTFE |
|
6 |
BODY SEAL |
PTFE |
|
7 |
STEM PACKING |
PTFE |
|
8 |
STEM |
A276 316 |
|
9 |
GLAND |
SS304 |
|
10 |
WASHER |
SS304 |
|
11 |
NUT |
SS304 |
|
12 |
LOCKING (option) |
SS304 |
|
13 |
HANDLE |
SS304 |
|
14 |
SLEEVE |
VINYL GRIP |
DIMENSIONS (mm)
|
SIZE |
øD |
B |
L |
H |
W |
||
|
NPS |
DN |
||||||
|
⅜〞 |
10 |
12.8 |
30.7 |
60 |
50 |
96 |
|
|
½〞 |
15 |
15 |
38 |
75 |
53 |
96 |
|
|
¾〞 |
20 |
20 |
40 |
80 |
64 |
125 |
|
|
1〞 |
25 |
25 |
45 |
90 |
66 |
125 |
|
|
1¼〞 |
32 |
32 |
54 |
110 |
79 |
170 |
|
|
1½〞 |
40 |
38 |
60 |
120 |
83 |
170 |
|
|
2〞 |
50 |
51 |
70 |
140 |
94 |
190 |
|
