Two-Pc Ball Valves
Model：HE-2421
Sizes range: 1/2"~ 3" (DN15 ~ DN80)
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
ISO5211 Direct mounting pad
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN63
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
ISO5211 Direct mounting pad

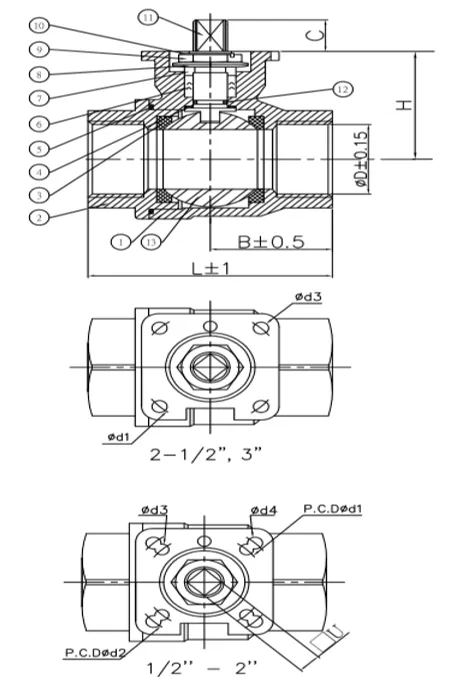

MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408
|
|
2 |
END CAP |
1.4408 |
|
3 |
BALL SEAT |
PTFE |
|
4 |
THRUST WASHER |
PTFE |
|
5 |
BODY SEAL |
PTFE |
|
6 |
STEM PACKING |
PTFE |
|
7 |
GLAND |
1.4301 |
|
8 |
DISC SPRING |
1.4310 |
|
9 |
NUT |
1.4301 |
|
10 |
SECURING RING |
1.4301 |
|
11 |
STEM |
1.4401 |
|
12 |
O-RING |
VINYL |
|
13 |
BALL |
1.4408 |
DIMENSIONS (mm)
|
SIZE |
ØD |
B |
L |
H |
口U |
Ød1 |
Ød2 |
Ød3 |
Ød4 |
ISO5211 |
C |
||
|
NPS |
DN |
||||||||||||
|
½〞 |
15 |
15 |
30.6 |
64 |
35 |
9 |
36 |
42 |
5.5 |
5.5 |
F03,F04 |
7.5 |
|
|
¾〞 |
20 |
20 |
33 |
68 |
40.5 |
11 |
42 |
50 |
5.5 |
6.5 |
F04,F05 |
11 |
|
|
1〞 |
25 |
25 |
37.8 |
75 |
44 |
11 |
42 |
50 |
5.5 |
6.5 |
F04,F05 |
11 |
|
|
1¼〞 |
32 |
31.8 |
48.4 |
96.5 |
49.6 |
11 |
42 |
50 |
5.5 |
6.5 |
F04,F05 |
12 |
|
|
1½〞 |
40 |
38 |
50.9 |
102 |
53.5 |
11 |
42 |
50 |
5.5 |
6.5 |
F04,F05 |
12 |
|
|
2〞 |
50 |
50.8 |
63 |
126 |
64.7 |
14 |
50 |
70 |
6.5 |
8.5 |
F05,F07 |
15 |
|
|
2½〞 |
65 |
65 |
74.7 |
149.5 |
90.5 |
17 |
70 |
|
8.5 |
|
F07 |
18 |
|
|
3〞 |
80 |
76 |
82.4 |
165 |
99.7 |
17 |
70 |
|
8.5 |
|
F07 |
18 |
|
