Two-Pc Ball Valves
Model：HE-2422
Sizes range: 1/4"~ 2" (DN8 ~ DN50)
Port availability: Full port
Nominal pressure PN100
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
ISO5211 Direct mounting pad
Download
Add to inquiry
Port availability: Full port
Nominal pressure PN100
Temp. rating: -10°C~180°C
Body material: EN10213 , 1.4408
Trim material: SS ball & stem
End connection: Threaded end
Seat matrial: PTFE
Note: Handle locking (option)
ISO5211 Direct mounting pad
MATERIAL LIST
Taiwan Valves Manufacturer
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
1.4408
|
|
2 |
END CAP |
1.4408 |
|
3 |
BALL SEAT |
15%G.F+PTFE |
|
4 |
THRUST WASHER |
PTFE |
|
5 |
BODY SEAL |
PTFE |
|
6 |
STEM PACKING |
PTFE |
|
7 |
GLAND |
1.4301 |
|
8 |
DISC SPRING |
1.4310 |
|
9 |
NUT |
1.4301 |
|
10 |
SECURING RING |
1.4301 |
|
11 |
STEM |
1.4401 |
|
12 |
O-RING |
VITON |
|
13 |
BALL |
A351 CF8M |

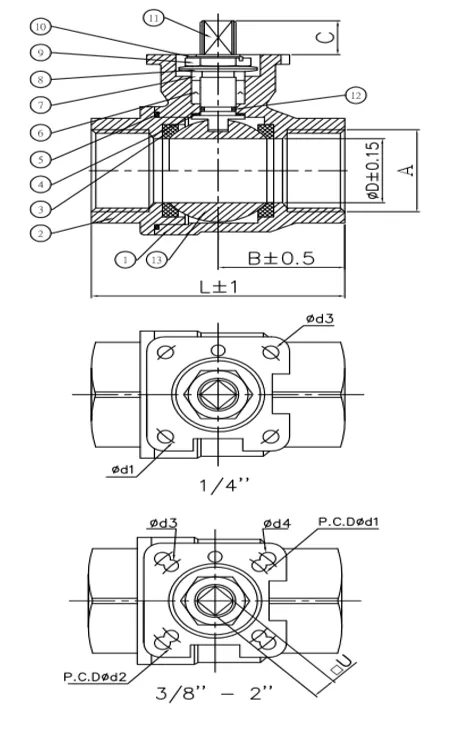

DIMENSIONS (mm)
|
SIZE |
øD |
A |
B |
L |
口U |
Ød1 |
Ød2 |
Ød3 |
Ød4 |
ISO5211 |
C |
|
|
NPS |
DN |
|||||||||||
|
¼〞 |
8 |
11.5 |
DIN 2999 ISO 228 |
24.8 |
50 |
9 |
36 |
|
6 |
|
F03 |
7.2 |
|
⅜〞 |
10 |
12.5 |
DIN 2999 ISO 228 |
30 |
60 |
9 |
36 |
42 |
6 |
6 |
F03,F04 |
7.2 |
|
½〞 |
15 |
15 |
DIN 2999 ISO 228 |
37.5 |
75 |
9 |
36 |
42 |
6 |
6 |
F03,F04 |
8 |
|
¾〞 |
20 |
20 |
DIN 2999 ISO 228 |
40.1 |
80 |
11 |
42 |
50 |
6 |
7 |
F04,F05 |
11.7 |
|
1〞 |
25 |
25 |
DIN 2999 ISO 228 |
45.2 |
90 |
11 |
42 |
50 |
6 |
7 |
F04,F05 |
10.7 |
|
1¼〞 |
32 |
32 |
DIN 2999 ISO 228 |
55 |
109 |
11 |
42 |
50 |
6 |
7 |
F04,F05 |
11.0 |
|
1½〞 |
40 |
38 |
DIN 2999 ISO 228 |
60.5 |
120 |
11 |
42 |
50 |
6 |
7 |
F04,F05 |
10.5 |
|
2〞 |
50 |
50.8 |
DIN 2999 ISO 228 |
69.9 |
140 |
14 |
50 |
70 |
7 |
9 |
F05,F07 |
15.3 |
