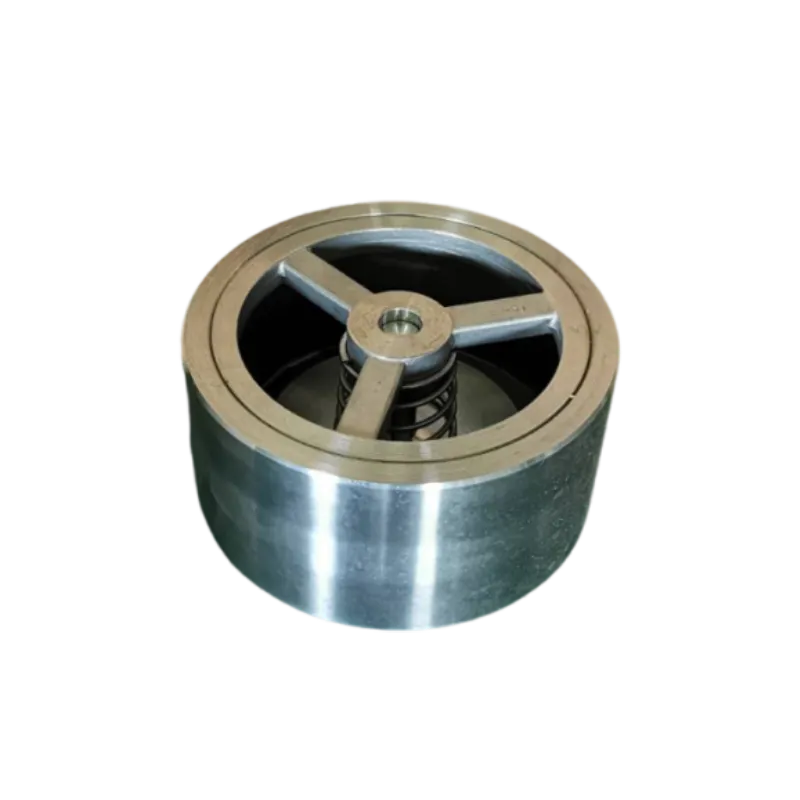

Check Valves
Model:HE-811
Sizes range: 5"~ 8" (DN125 ~ DN200)
Port availability: Reduce port
Nominal pressure: PN25
Body material: EN10213,1.4408
Trim material: Stainless steel
Installation: PN10/PN16/PN25/CL150
Note: Liquid fluid only
Add to inquiry
Port availability: Reduce port
Nominal pressure: PN25
Body material: EN10213,1.4408
Trim material: Stainless steel
Installation: PN10/PN16/PN25/CL150
Note: Liquid fluid only

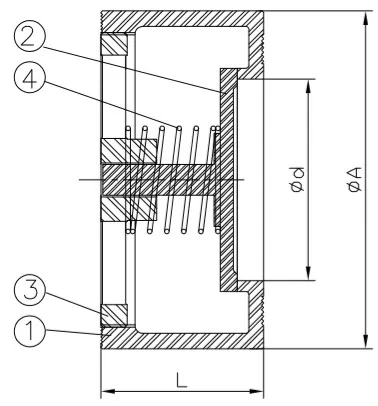

MATERIAL LIST
Hexcellence provides OEM check valve and a variety of reverse flow check valves used for different applications of product.Our factory is equipped with most advanced facilities such as CNC Lathe Machines and Machining Centers.With a professional management team and production processes to make us have brilliant achievement in the competitive international market.
No. |
PART NAME |
SPECIFICATION |
1 |
BODY |
EN10313-4,1.4408 |
2 |
DISC |
EN10313-4,1.4408 |
3 |
CAP |
EN10313-4,1.4408 |
4 |
SPRING |
AISI SS316 |
DIMENSIONS (mm)
SIZE |
inch |
ød |
øA |
L |
|
NPS |
DN |
||||
5〞 |
125 |
5 |
105 |
187 |
90 |
6〞 |
150 |
6 |
130 |
217 |
105 |
8〞 |
200 |
8 |
170 |
273 |
140 |
